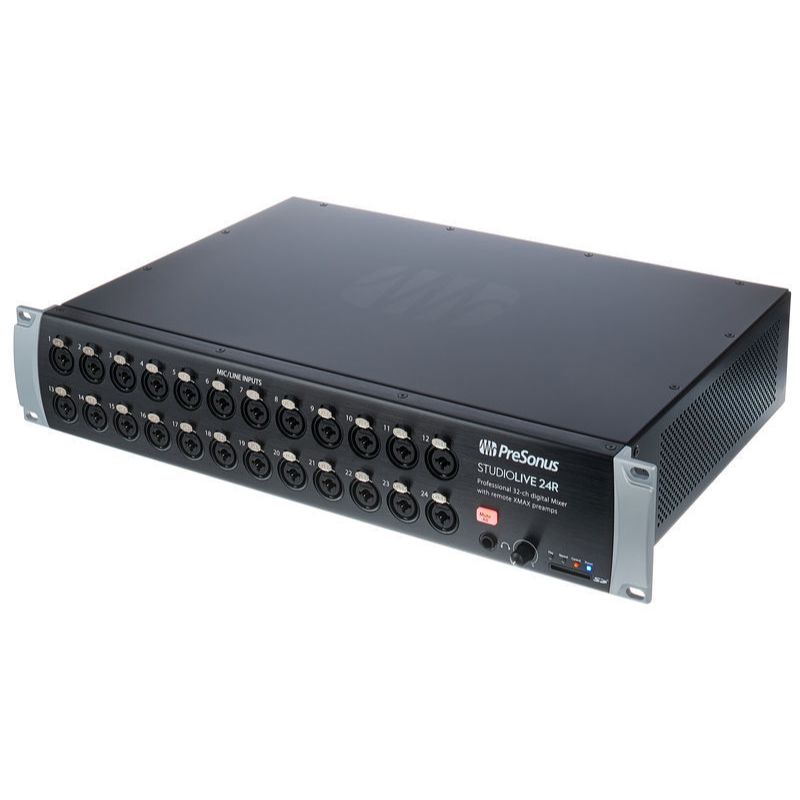

AVB Stagebox mode for StudioLive Series III mixers
24 Microphone / Line inputs XLR / jack 6.3 mm combo sockets with 48 V phantom power
Stereo AUX input RCA (L / R)
16 AUX Sends
12 Mix outputs 6.3 mm jack balanced
2 Main outputs XLR (L / R)
Stereo headphone output 6.3 mm jack
"Mute All" button for muting all inputs and outputs
Integrated SD card recorder (stereo) for recording the main signal and for use as a player
40x40 USB recording interface
55x55 AVB recording interface
Converter: 24 Bit / 48 kHz with 115 dB dynamic range
Fat Channel signal processing: Polarity, high pass filter, gate / expander with sidechain, fully parametric 4-band EQ, compressor with sidechain, limiter, including vintage plug-ins for EQ and compressor
4 Master effects processors including vintage reverb plugins
Line delay in all inputs and outputs
Fully parametric 6-band EQ in all outputs, 8 graphic EQs (31-Band)
Presets plus user memory for Fat Channel, effects and graphic EQ
USB port, Ethernet Control connector, Ethercon AVB audio network connector
Control software "UC Surface" for OS X, Windows, iPad and Android tablet
Free monitor app "QMix-UC" for iPhone, iPod Touch and Android smartphones
Build: 19" / 2 U
Dimensions: 483 x 305 x 90 mm
Weight: 4.9 kg
Includes recording software "Capture", DAW software "Studio One 3 Artist", "Studio Magic" plugin suite and Fat Channel Plugin Collection (for download)
