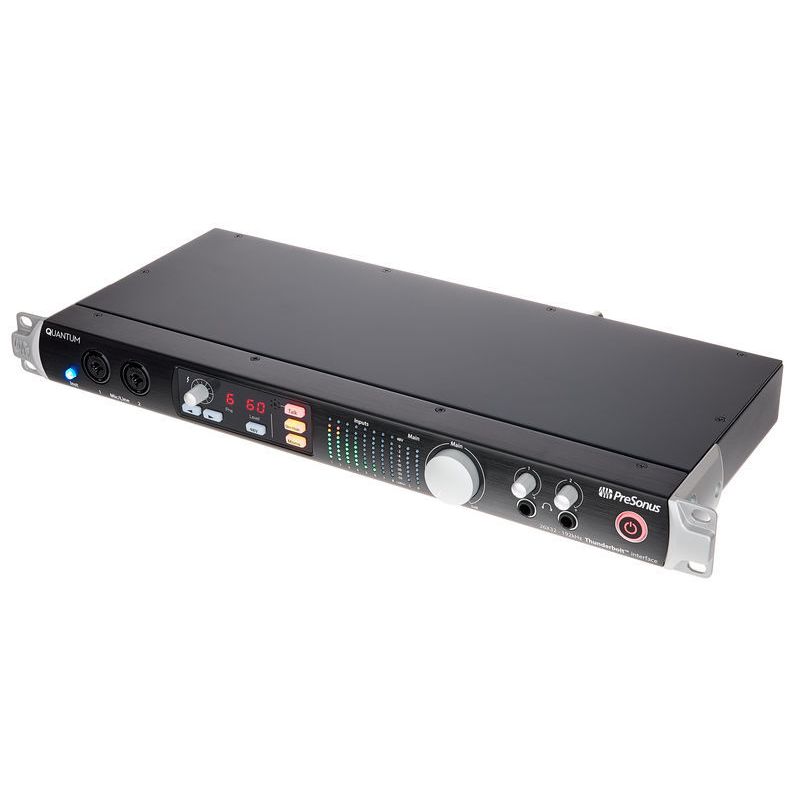

Name: Presonus Quantum
Brand: Presonus

26 Inputs
32 Outputs
Very low latency <1 ms
Audiophile 24 bit digital converter with 120 dB dynamic response
Up to 192 kHz sampling rate
Inputs: 2x XLR Combo (Mic / Line / Instr.), 6x XLR Combo (Mic / Line)
8 XMAX Class A microphone preamplifier (ON <-131 dB, THD + N <0.005%)
Perfect integration in DAW "Studio One 3" (including gain control)
DC-coupled line outputs allow driving (CV / gate) of analog components (synths, filters, etc.) out of DAW
Remote control and programmable via Mac, PC, iPad and Tablet (via "UC Surface")
Included control software / app "UC-Surface": Setting and storing pre-gain (gain)
48 V Phantom Power on / off
Realtime Analyser
Front-panel talkback microphone with push-button
Next / Prev button plus gain control
48 V button (phantom power) with status light
Dim / Mute and Mono buttons with status light
8 LED chains (8-segment plus 48 V-LED) for the analog inputs
2 LED chains (8-segment) for the main output (L / R)
8 Balanced DA outputs (each TRS jack 6.3 mm)
Separate balanced main output (L / R 2 TRS jack 6.3 mm) with large front-side volume control
2 Headphone output (stereo headphone 6.3 mm) with 2 separate volume control knobs
16x16 ADAT I / O (48 kHz) or 8x8 Dual SMUX I / O (96 kHz)
S / PDIF I / O (coaxial)
Word Clock I / O (BNC)
MIDI I / O (5-pin DIN)
Up to 4 Quantum can be cascaded via Thunderbolt
Power supply: external power supply (12 VDC)
Dimensions (W x D x H): 483 x 140 x 45 mm
Weight: 2.3 kg
Incl. Control software / app "UC-Surface" (to download) and DAW-software "Studio One 3 Artist" (download)

Presonus Quantum

Presonus Quantum

Thunderbolt 2 Audio Interface

HK$8,500.00
